Swing Gates

Industrial Safety Swing Gates

Unmatched Adjustability

YellowGate’s twenty inches of adjustable length, adjustable swing direction and universal mounting system protects every passageway, with one swing gate. Simply count the number of openings you need to protect and place your order — no tracking of measurements or mounting types required.

Variable Width Swing Gate

With 16″ to 36″ of adjustability, YellowGate’s universal swing gate covers the largest opening distance of any swing gate on the market.

Adjustable Swing Direction

Changing the direction of a YellowGate’s swing is as simple as changing a few bolts. With other swing gates, changing swing direction requires flipping of parts or mounting positions that restrict installation flexibility.

  • Specifications
    pallet of swing gates

    Variable Width Swing Gate

    With 16″ to 36″ of adjustability, YellowGate’s universal swing gate covers the largest opening distance of any swing gate on the market. To choose your width, simply slide the gate to the desired width and fasten the adjustment bolts on the top and bottom rails. Note: inline mounting covers openings from 19.625” to 36“. Perpendicular mounting covers openings from 16” to 32.625”.

    Adjustable Swing Direction

    YellowGate’s universal swing further reduces ordering complexity and allows you to re-purpose gates as required. Changing the direction of a YellowGate’s swing is as simple as changing a few bolts. With other swing gates, changing swing direction requires flipping of parts or mounting positions that restrict installation flexibility. YellowGate opens to a maximum angle of 108 degrees.

    UNIVERSAL MOUNT

    Mounts anywhere without additional parts to order

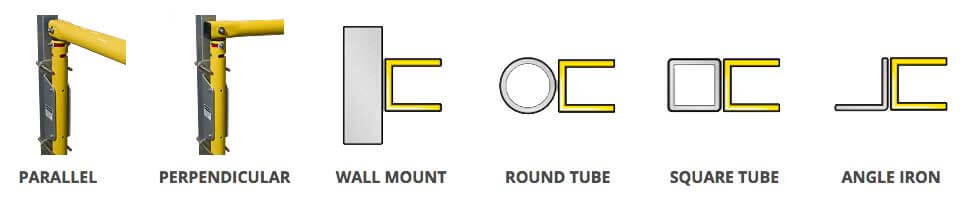

    YellowGate’s universal mount installs in minutes using simple hand tools — no cutting, welding or drilling. The mount can be fixed to walls, square and round tubing, or angle iron in both parallel and perpendicular mounting positions. The universal mount meets any installation requirement, with a single SKU. swing gate universal mount options

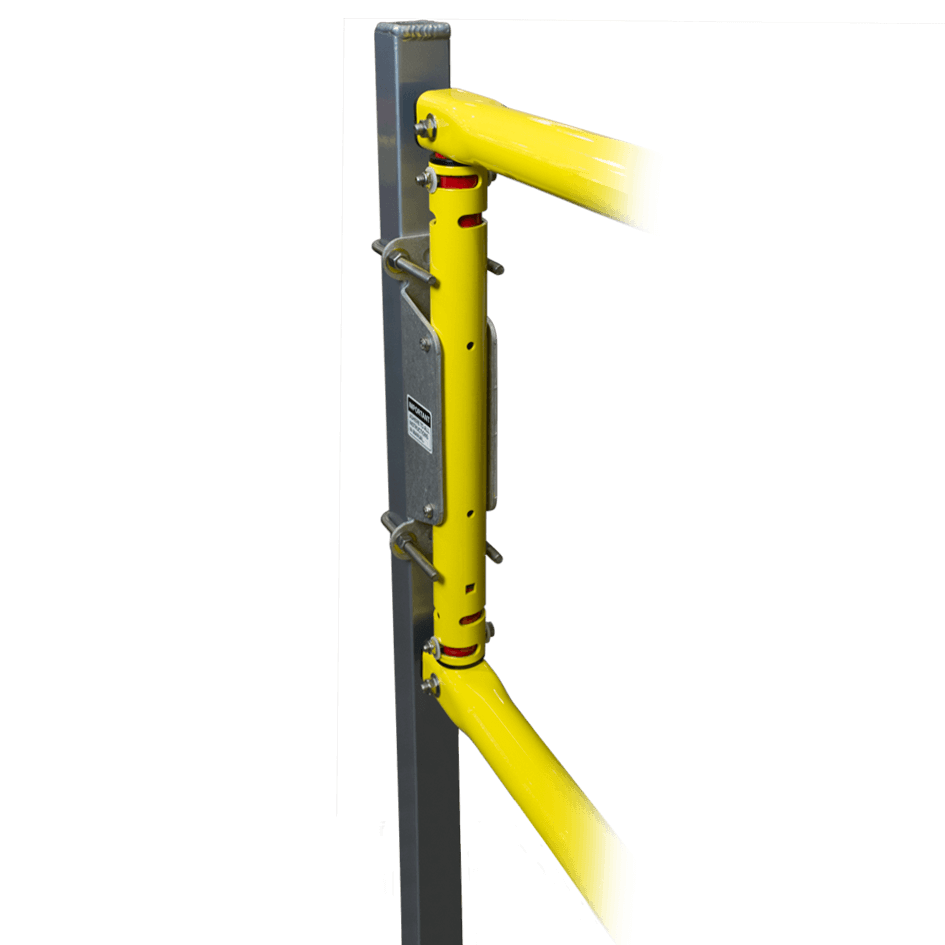

    Perpendicular Mounting

    Perpendicular mounting places the mount and hinge point outside of the passageway maximizing access width and minimizing dangerous snag potential. This mounting configuration is commonly used with ladders and other narrow openings.

    Parallel Mounting

    Parallel mounting attaches the mount so the gate handrail and hinge point are aligned. This mounting configuration is often used in large openings.

    Stainless hardware and tension adjustment tool Included

    Each swing gate includes stainless steel mounting and hardware kit along with a tension adjustment tool. swing gate includes stainless steel mounting and hardware kit

    MEETS ANY INSTALLATION REQUIREMENT, WITH NO ADDITIONAL PARTS REQUIRED.

    Ladder Fall Protection YellowGate’s smallest adjustable range fits narrow ladder openings, protecting from dangerous falls. YellowGate’s design reduces the risk of operators being retained or tripped at the ladder opening. Yellowgate Logo Get more product information at yellowgate.com
  • Downloads
    Download a product sheet here.

       YellowGate Swing Gate Sales Sheet

  • FAQ
    1. Which is better, powder coating vs. paint or primer? A: Powder coating finishes are much tougher and thicker than traditional liquid paint or primers. And because they use no harsh solvents like paint, there is zero off gassing or foul chemical odors that frequently are associated with traditionally painted finishes. The bottom line, powder coating is tougher, longer lasting and doesn’t smell! Far superior to painted finishes.
    2. Can I get my stairs in custom colors? A: Yes.
    3. Can I get my stairs customized? A: Yes, let us know your special requirements and we'll design something just for you!
    4. What is the difference between IBC and OSHA requirements? A: The differences between IBC and OSHA regulations are enormous. IBC codes, generally are far more stringent and comprehensive than OSHA. OSHA guidelines are established with the basic understanding that the end user would be primarily a properly trained adult user. Whereas IBC regulations assume that the user may be a small child. Therefore, the construction requirements must be far more stringent and comprehensive.
    5. What are some common IBC requirements?  A: Common major differences are balusters (or pickets) must be no more than 4" on center spacing, treads must be no less than 7" high and 11" deep and handrails must be no less than 42" high. ErectaStep Commercial stairs go far beyond our competitors when it comes to IBC compliance.
    6. How many prefabricated aluminum stair manufacturers build to IBC standards? A: None. To our knowledge, none of our competitors build their stock units to comply with IBC regulations.
